Power and easy of operation in perfect harmony
The handy multi-talent: The OF 1400 router weighs just 4,5 kg – one of the lowest machine weights in its class. The 70 mm routing stroke is impressive when making recesses for fittings or routing with templates. It also has a comprehensive set of equipment that enables it to master virtually any routing task.
Pure precision: rigid base plate due to guide columns on both sides
Short set-up times: Rocker and ratchet principle for convenient cutter changes
Routing depth adjustment to 1/10 mm
Quick-acting brake and MMC electronics
Tool-less copying ring changes
Up to 99 % dust extraction when routing with chip deflector and dust extraction hood
Features
- Plug it - Removable, replaceable mains cable with safety lock for quick conversion.
- Antistatic function - Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working
- Cleantec - Integrated bayonet fitting as the connecting element between the extractor and the tool
- MMC Multi Material Control electronics - “Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material
- FastFix - Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier
- Guide system - Patented guide system for safe guidance of saws and router bits
- Quick-acting brake - For safe work when planing, sawing and routing.
Technical data
- Collet diameter - 6 - 12,7 mm
- Routing stroke - 70 mm
- Routing depth fine adjustment range - 8 mm
- Idle engine speed - 10000 - 22500 min-1
- Power consumption - 1400 W
- Weight - 4,50 kg
- Max. cutter diameter - 63, mm
- Dust extraction connection diameter - 27/36 mm
Noise and vibration values
- Routing: Total vibration average, Ah - 3,50 m/s²
- Routing: A-weighted sound power level, LWA - 93,00 dB(A)
- Routing: Uncertainty (noise) K - 3,00 dB
- Routing: Uncertainty (vibration) K - 2,00 m/s²
- Routing: A-weighted sound pressure level, LpA - 82,00 dB(A)

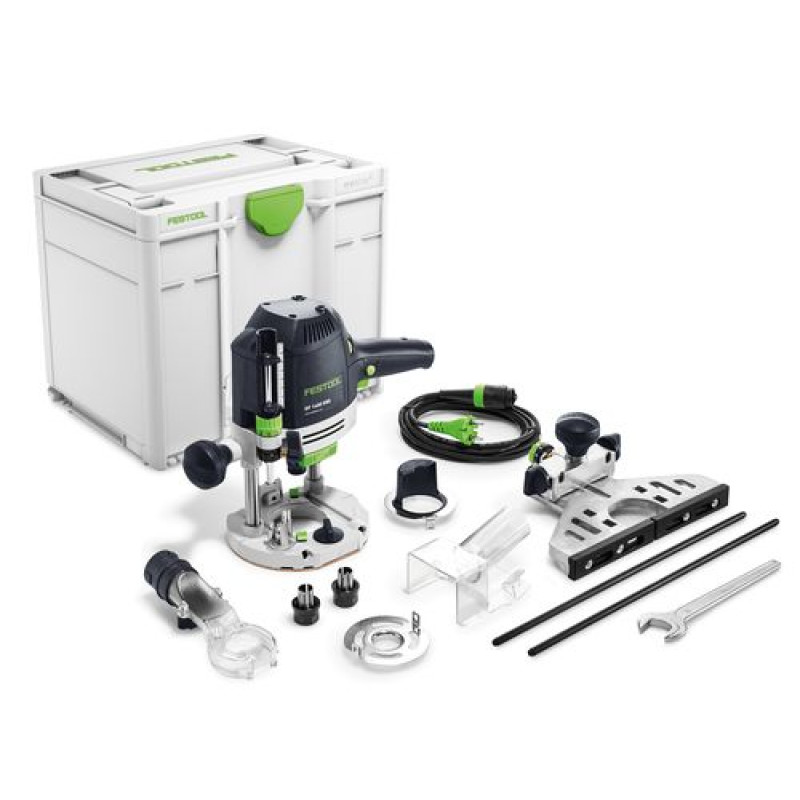

Items included
Ø 8 mm clamping collet (494460)
Ø 12 mm clamping collet (494462)
side stop with fine setting (492636)
copying ring Ø 30 mm (492185)
extraction hood, top
open-ended spanner, WAF 24
in SYSTAINER SYS3 M 337 (204844)
Main applications
Rounding, chamfering, rebating and profiling edges
Routing circles and cut-outs with the multi-routing template
Grooving rear panels or recessing dovetail batons with the guide system
Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
Routing mineral material (max. cutter Ø 45 mm)
