Bessey installation kit BEYCEPS BEY-IK

Bessey installation kit BEY-IK for greater lifting range

• Lifting force up to 600 N / 60 kg

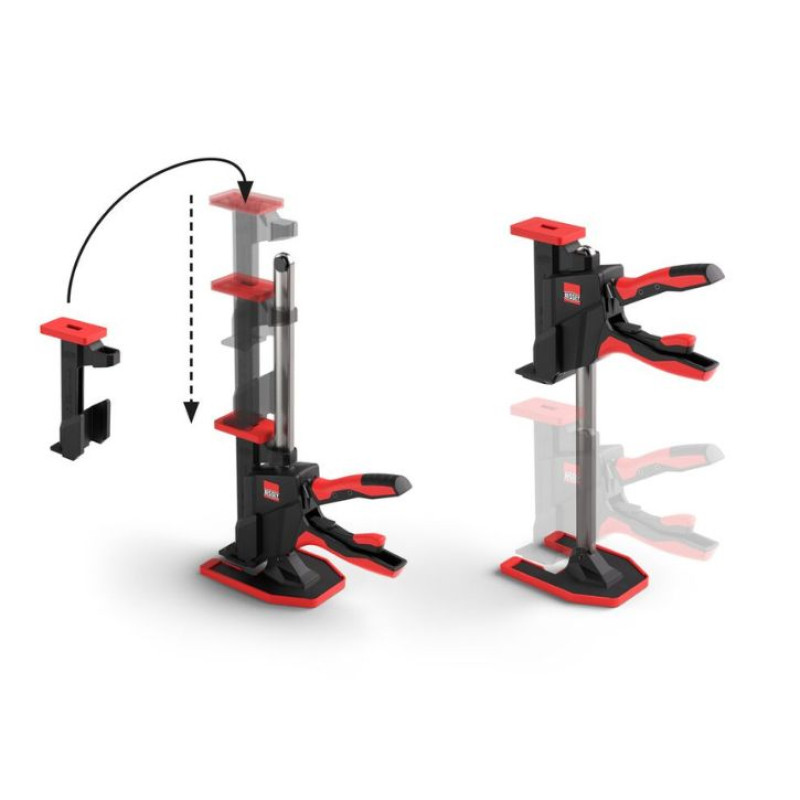

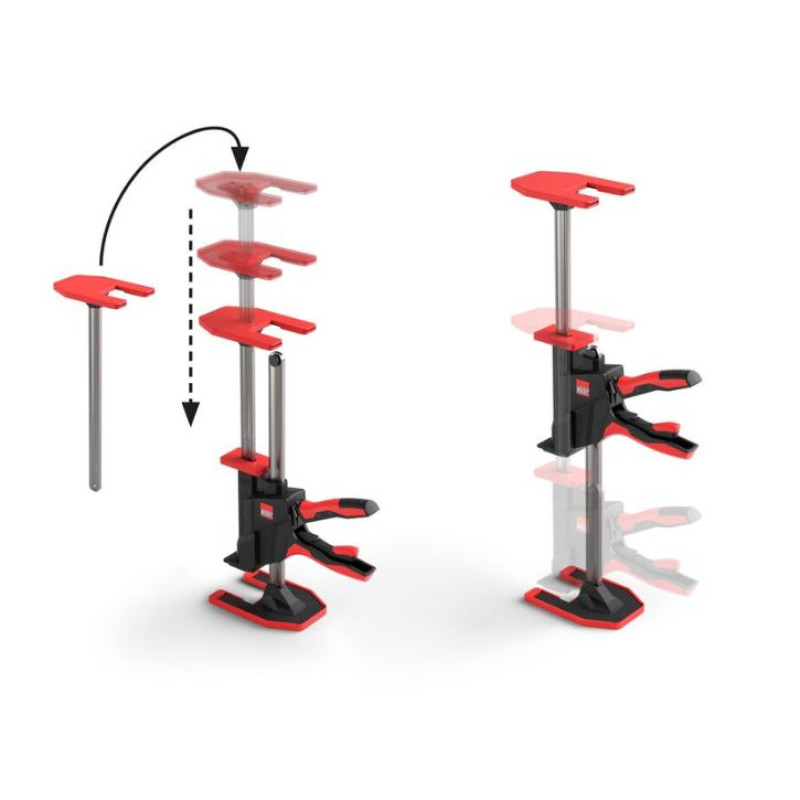

• Two-piece accessory set consisting of extension adapter and rail unit for one-handed lifting tool BEYCEPS BEY23
• Load capacity of up to 60 kg for quick and precise assembly, e.g. wall cabinets, floating sideboards and bathroom furniture

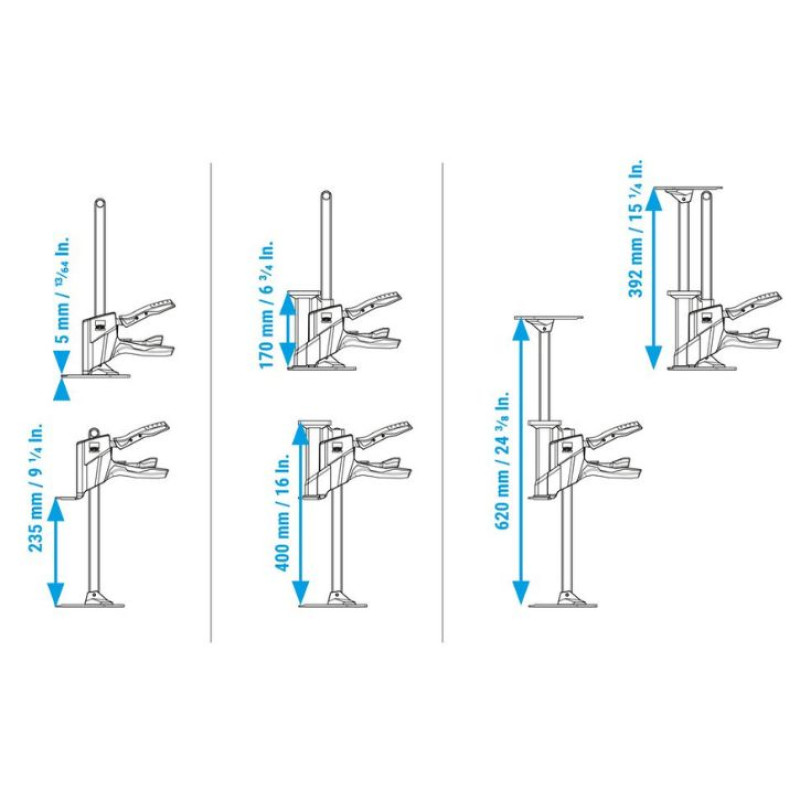

• Quick, tool-free installation – only in conjunction with the extension adapter (usable range 170 mm to 400 mm) or additionally with rail unit (usable range 392 mm to 620 mm)
• Safe and gentle thanks to non-slip and scratch-resistant protective caps

Technical data

• Rail - 22 x 8 mm
• Lifting force - up to 60 kg (600 N)
• Utilisation area extension adapter BEY23 - 170 - 400 mm
• Utilisation area extension adapter BEY23 + rail unit BEY-IK - 392 - 620 mm
• Weight - 1,24 kg

Items included

• 1 x extension adapter
• 1 x rail unit
• in a cartoon box

Main applications

• Assembly
• Metal construction
• Furniture and joinery works
• Carpentry and woodwork
• Kitchen construction and shop fitting
• Hall construction
• Staircase construction
• Glass construction
• Disassembly
• Shell construction
• Interior fittings
• Dry construction
• Renovation work
• Parquet and laminate work
• Laying decking boards
• Garden and landscape construction
• Household
• DIY
• Door and window construction
• Low-fatigue work with minimal effort
